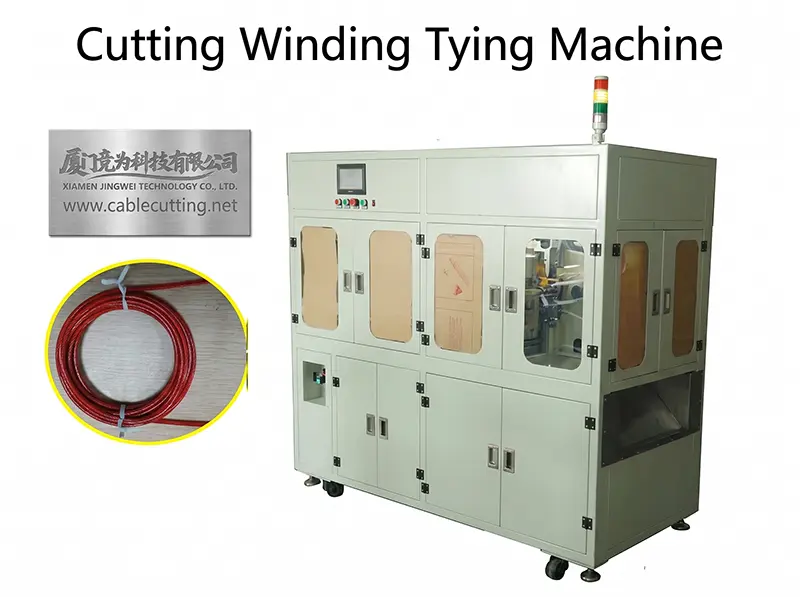

Automatic Wire Rope Cutting Winding Tying Machine WPM-CRT-02M

Automatic Wire Rope Cutting Winding Tying Machine WPM-CRT-02M

Name: Automatic Wire Rope Cutting Winding Tying Machine WPM-CRT...
Brand: Automatic Cable Stripping Equipment
SKU: WPM-CRT-02M
Availability: InStock
Rating: 5 (1 reviews)

Model No: WPM-CRT-02M
Spesifikasjoner
Automatic Wire Rope Cutting Winding Tying Machine WPM-CRT-02M
Applicable Wire Diameter: 2mm wire diameter, 3.5mm leather
Applicable Wire Diameter (Alternative): 2.5mm Wire diameter with 4.8mm leather
Cutting Wire Length: 3m-12m
Wire Cutting Accuracy (12m): ±50mm
Wire Cutting Accuracy (8m): ±30mm
Wire Cutting Accuracy (6m): ±20mm
Wire Cutting Accuracy (3m): ±15mm
Binding Diameter: ≤ 30mm
Theoretical Output: ≤550PCS/H
Circle Inner Diameter: 80-150mm
Head Length: 80-130mm
Tail Length: 80-130mm
Suitable for Tying: rubber-coated iron core
Power Consumption: 1700W/H
Air Pressure Requirement: 0.70 -- 0.8Mp
Machine Size: 1620W*750D*1800Hmm
Inquiry now

Automatic wire rope cutting, winding and binding machine WPM-CRT-02M is a versatile cable processing equipment that can perform wire rope cutting, winding and binding operations. It is also known as Cable Bunching Machine, Cable Coiling Tying Machine or Cable Cutting Winding Binding Machine.
Automatic Wire cutting + winding + tying machine, high speed, accurate meter counting, unattended
Applicable material: Applicable wire diameter: 2mm wire diameter, 3.5mm leather
Applicable Wire diameter: 2.5mm Wire diameter with 4.8mm leather cutting Wire length: 3m-12m
The appearance of winding: Precision of circle single/double tied cutting Wire: 1:12m ±50mm
Wire cutting accuracy: 2:8m ±30mm Wire cutting accuracy: 3:6m ±20mm
Cutting Wire accuracy: 4:3m ±15mm binding diameter: ≤ 30mm
Theoretical output: ≤550PCS/H Circle inner diameter: 80-150mm
Head length: 80-130mm Tail length: 80-130mm
Suitable for tying: rubber-coated iron core power consumption: 1700W/H
Fault alarm: automatic alarm air pressure requirement: 0.70 -- 0.8Mp
The machine size is about 1620W*750D*1800Hmm

8 style, automatic Wire cutting, winding and tying function in one, single/double tying around the circle;
Strong versatility, compatible with wire/hose/rope;
Theoretical production can reach 800 bars/hour;
Easy to operate, easy to debug, easy to maintain;
After wrapping and tying, the finished products are beautiful, generous, neat, and easy to package;
Humanized design reduces the fatigue strength of employees;
The original patent, only fast not broken, rock-solid.
Automatic fault alarm shutdown, reduce maintenance costs;

What are the primary functions of the WPM-CRT-02M Automatic Wire Rope Cutting Winding Tying Machine?

The WPM-CRT-02M is a fully integrated cable processing equipment that performs three key functions automatically: cutting wire rope or cable to precise lengths, winding it into neat coils, and securely binding the coils with ties. This automation streamlines production of wire harnesses and cable assemblies.

What is the production capacity and cutting accuracy of this machine?

This industrial cable harness machine offers a high output of up to 550 pieces per hour (≤550PCS/H). It provides excellent cutting accuracy with a tolerance of ±15-50mm and is designed to cut wire lengths ranging from 3 to 12 meters, ensuring consistent and efficient batch processing.

What wire diameter and types is the machine compatible with?

The automatic wire rope cutting machine is specifically engineered to process wires with a diameter of 2mm to 2.5mm. It is ideal for handling various wire ropes and cables commonly used in bundling, harnessing, and other industrial applications that require coiling and tying.

How does the automatic wire tying feature benefit the production process?

The integrated automatic wire tying machine eliminates the need for manual binding, significantly increasing speed and consistency. It ensures every coil is securely and uniformly tied, reducing labor costs, preventing tangles, and preparing products for immediate packaging or further assembly.

Who is the ideal user for this automatic cutting, winding, and binding machine?

The WPM-CRT-02M is perfect for manufacturers, wire harness producers, and electrical component assemblers who require high-volume, precise processing of wire ropes and cables. It is a key piece of cable processing equipment for industries seeking to automate their cable bunching and coiling operations for improved productivity and quality control.
