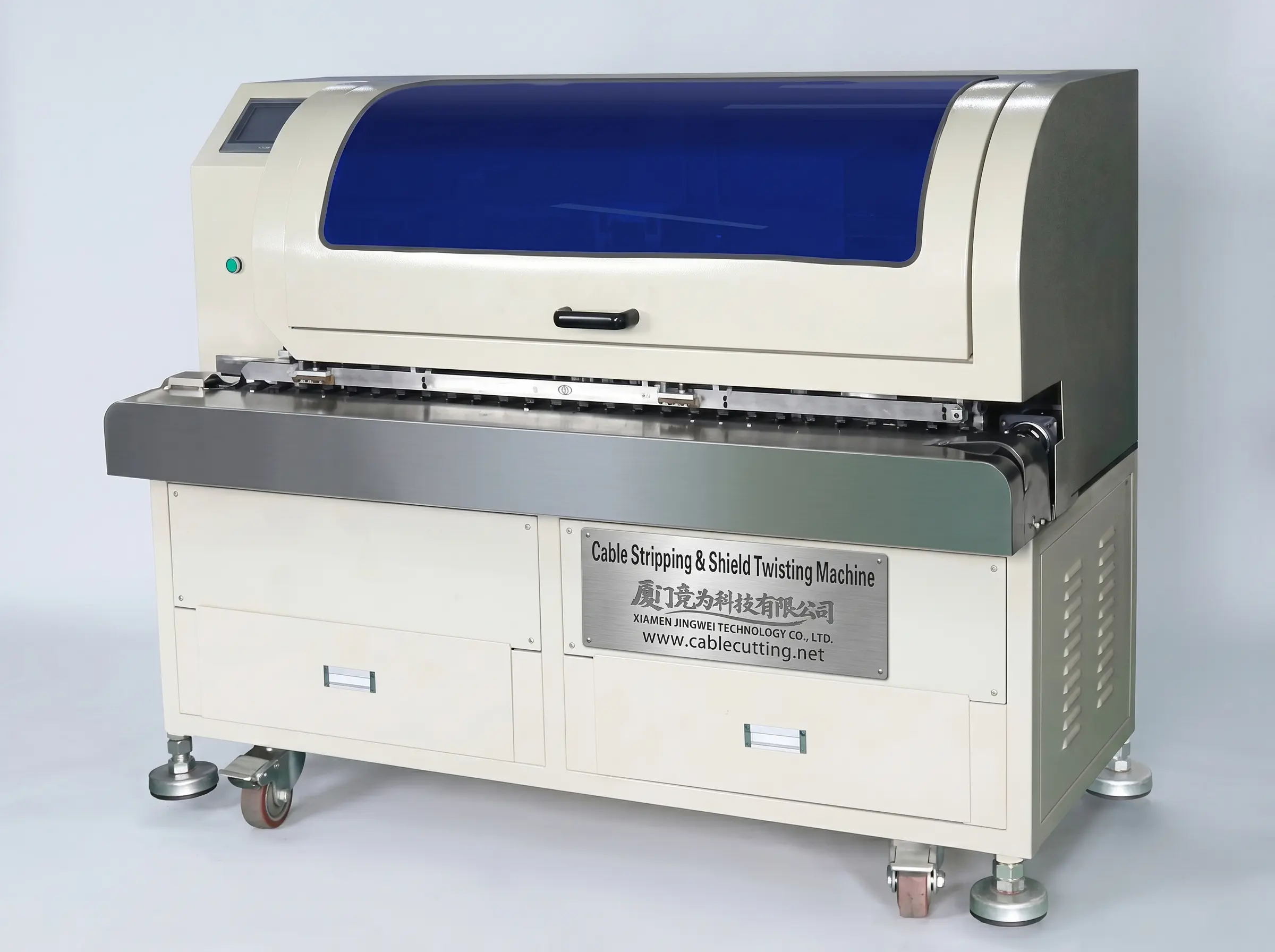

Cable Stripping and Braided Shield Brushing Twisting Machine CS-BST007

Name: Automatic Cable Stripping & Shield Twisting Machine CS-BS...
Brand: Automatic Cable Stripping Equipment
SKU: CS-BST007
Availability: InStock
Rating: 5 (1 reviews)

1. Technical Specifications

Parameter Category	Specific Parameters	Remarks
Basic Information	Model	CS-BST007
	Net Weight	Not clearly specified
	Dimension (L×W×H)	2350×880×1500mm
Wire Processing Params	Diameter of Wire	Φ2~8mm (can be customized)
	Jacket Stripping Length	10~60mm (can be customized)
	Capacity	1200~1500pcs/hour
Power & Air Pressure Params	Rated Power	600W
	Power Supply	AC220V 50HZ
	Air Pressure	0.5~0.7MPa (Must be clean, dry and stable compressed air)
Control & Operation Params	Control Mode	Touch screen and PLC control mode; processing parameters (such as cylinder delay, speed, motor position, etc.) can be set in the screen
	Working Modes	Two working modes: single cycle and continuous cycle (can be switched as needed for machine operation and debugging)
Safety & Structure Params	Safety Protection	Equipped with an openable safety cover and pneumatic support rod open method (safe and beautiful)
	Structural Design	Designed by human structural mechanics to reduce fatigue strength
Integrated Functions	Integrated Functions	Wire jacket stripping, braided shield brushing and twisting, braided shield tip trimming, aluminum foil mylar cutting and removing, automatically finished product collecting

2. Product Description

This machine is specially designed for processing cables with braided shielding, such as USB data cable, 1185 DC cable, car connection cable, microphone cable, etc. It integrates multiple functions and can automatically complete the following actions: jacket stripping, shield brushing and twisting, braided shield tip cutting, aluminum foil mylar removing. Just put the wire to be processed on the conveyor chain, the machine will complete all the processes automatically.

3. Important Notes

1. Product Updates: Images and videos displayed may differ from current products due to ongoing design improvements and updates. The actual delivered product shall prevail in case of any discrepancy.

2. Optional Accessories: Some accessories and components shown in product photos/videos are optional configurations and not included in the standard package. Please order these items separately if required.

3. Technical Parameters: Specifications are for reference only. Equipment suitability depends on actual working conditions, not just parameter comparison. Please consult us to confirm compatibility for your specific application.

What is the primary function of the Cable Stripping and Braided Shield Brushing Twisting Machine CS-BST007?

The CS-BST007 is a high-efficiency cable processing machine designed to perform three key operations in one integrated system: precise cable jacket stripping, thorough brushing of the exposed braided shield, and uniform twisting of the shield strands. This automation streamlines the preparation of shielded cables for termination or connector attachment in industrial cable harness manufacturing.

What types of cables is the CS-BST007 machine suitable for processing?

The CS-BST007 is engineered to handle a wide range of industrial cables with braided shields, including coaxial, data, and power cables. Its adjustable tooling and programmable settings allow it to accommodate various cable diameters and shield types. For specific compatibility with your cable specifications, we recommend consulting directly with JINGWEI, the manufacturer in China.

How does this machine improve efficiency in a cable harness production line?

By integrating stripping, brushing, and twisting into a single, automatic process, the CS-BST007 significantly reduces manual labor, processing time, and the risk of human error. This high-efficiency cable processing machine ensures consistent, high-quality results on every cable end, leading to increased throughput, reduced scrap, and lower overall production costs for harness manufacturers.

What are the key durability and precision features of the JINGWEI CS-BST007?

Built for industrial durability, the CS-BST007 features a robust steel frame, high-quality servo motors for precise motion control, and durable, wear-resistant brushing and cutting components. Its precision is ensured through programmable logic controller (PLC) management, allowing for exact adjustment of strip length, brush depth, and twist parameters to meet strict technical specifications.

As a manufacturer, what support does JINGWEI provide with this wire processing machine?

JINGWEI, as a leading manufacturer from China, provides comprehensive support including detailed operational training, technical documentation, and a standard warranty. We also offer responsive customer service for troubleshooting and supply genuine spare parts to ensure minimal downtime. Interested buyers are encouraged to inquire now for specific quotation, delivery, and after-sales service details.
