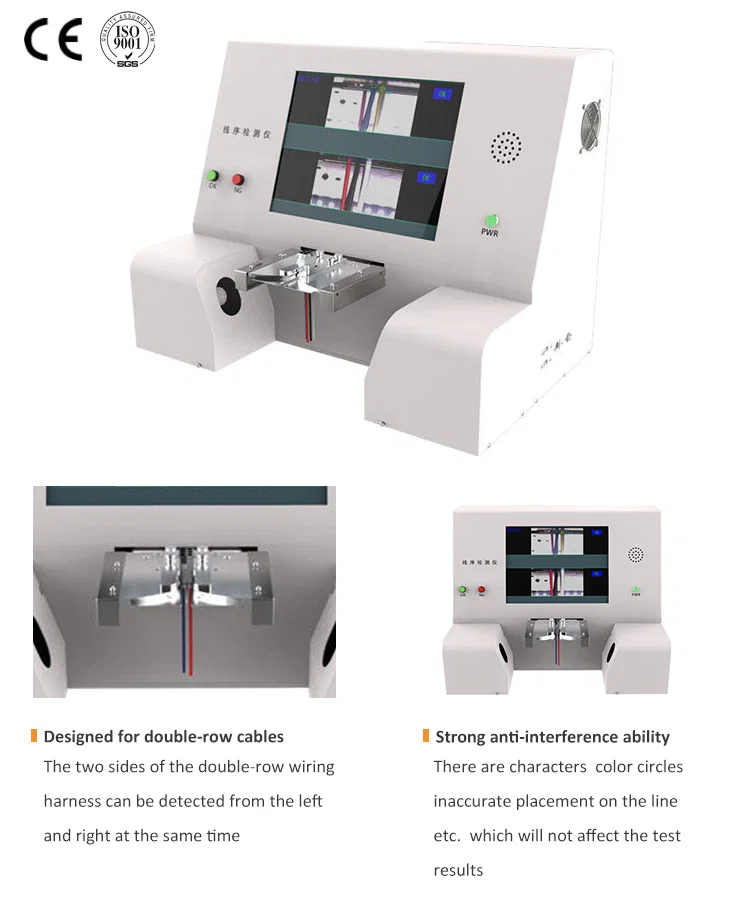

Double Row Wire Color Sequence Detector with 1280*1024 Camera WPM-DC20

The WPM-DC20 stands out in the market for its exceptional capabilities and user-centric design. Here's a detailed look at the features that make this detector an indispensable asset for your production line:

• Dual Functionality: Color Sequence and Conduction Testing in One: This powerful machine seamlessly integrates two critical testing functions. It not only verifies the correct color sequence of wires within your harnesses but also rigorously tests the conduction performance. This comprehensive approach ensures both the physical arrangement and electrical integrity of your wiring, eliminating potential defects that separate tests might miss.

• Specifically Engineered for Double-Row Connectors: The WPM-DC20 is meticulously designed to excel in testing double-row wiring harnesses. Its specialized architecture and algorithms are optimized to handle the complexities of these connectors, providing consistently accurate and reliable results, unlike generic testers that may struggle with double-row configurations.

• Unrivaled Anti-Interference Performance: Stable and Dependable Results: In demanding factory environments, interference can compromise testing accuracy. The WPM-DC20 boasts super anti-interference capabilities, ensuring stable and reliable test results even in electrically noisy settings. This robust design minimizes false positives and negatives, giving you confidence in your quality control process.

• Immune to Visual Distractions: Consistent Results Regardless of Visual Elements: The WPM-DC20 is intelligently engineered to be unaffected by visual elements on the wire harness. Whether your wires feature text markings, color circles, or varying line placements, these visual cues will not impact the accuracy of the color sequence detection. This ensures consistent and dependable results, focusing solely on the actual wire color sequence.

• High-Resolution Camera System for Precise Color Detection: At the heart of the WPM-DC20 lies a sophisticated camera system. Featuring a 1280*1024 pixel resolution, 60FPS COMS camera, the machine captures high-fidelity images of the wire connectors. This high resolution, combined with the progressive lens parameters (megapixels: 75mm F1.4), ensures exceptionally accurate color detection, even for subtle color variations.

• Rapid Detection Cycle: Boost Production Throughput: Time is of the essence in manufacturing. The WPM-DC20 is designed for speed, achieving a detection time of within 0.25 seconds. This rapid testing cycle significantly increases your production throughput, allowing you to test more harnesses in less time without compromising accuracy.

• Energy Efficient Operation: Cost-Effective and Environmentally Conscious: Designed for efficiency, the WPM-DC20 consumes power within 35W. This low power consumption translates to cost savings in electricity and contributes to a more environmentally conscious operation.

• Embedded Motherboard for Reliability and Longevity: The WPM-DC20 utilizes an embedded motherboard, a hallmark of robust and reliable industrial equipment. This design contributes to the machine's long lifespan and stable performance in demanding production environments.

• Exceptional MTBF for Minimal Downtime: Maximize Uptime and Productivity: The Main MTBF (Mean Time Between Failures) is >50000 hours, highlighting the exceptional reliability and durability of the WPM-DC20. This impressive MTBF minimizes downtime, ensuring continuous operation and maximizing your production uptime and overall productivity.

• User-Friendly Interface: Standard Peripherals and Built-in Keyboard: Operation is intuitive and straightforward. The WPM-DC20 comes equipped with a standard mouse for easy navigation and control. For added convenience in space-constrained environments, a built-in screen keyboard is also included. Furthermore, an external USB interface provides flexibility for connecting external peripherals or data transfer.

Technical Specifications:

Applications:

The WPM-DC20 is ideally suited for a wide range of industries and applications where precise wire harness assembly and quality control are critical, including:

• Automotive Wire Harness Manufacturing: Ensuring the reliability of complex automotive wiring systems.

• Consumer Electronics Assembly: Guaranteeing the quality of internal wiring in devices like computers, appliances, and entertainment systems.

• Industrial Equipment Manufacturing: Testing harnesses for machinery, control panels, and automation systems.

• Telecommunications Equipment Production: Verifying the integrity of wiring in communication infrastructure.

• Medical Device Manufacturing: Meeting stringent quality standards for medical equipment wiring.

• Aerospace and Defense Industries: Ensuring the highest levels of reliability in critical wiring systems.

Conclusion:

The WPM-DC20 Wire Color Sequence Detector is more than just a testing machine; it's your partner in achieving superior wire harness quality. Its unique combination of color sequence and conduction testing, coupled with its robust anti-interference design, rapid detection speed, and user-friendly operation, makes it the ideal solution for manufacturers seeking to minimize errors, maximize efficiency, and deliver consistently high-quality products. Invest in the WPM-DC20 and elevate your wire harness testing process to a new level of precision and reliability.
